Pandect IS-670

Pandect IS-670 is a three component immobilizer: there is a base unit, an immobilizer relay and two tags in the set.

With Pandect IS-670 no one will be able to drive the car without the tag. You should have the tag on you every time you're going to use the car in order to disarm the system. If a stranger will try to start the engine, Pandect IS-670 will allow it, but the first attempt to start off will immediately lead to the engine blocking. This algorithm doesn’t impede a remote start system if the car has one, and provides the car with the highest security level.

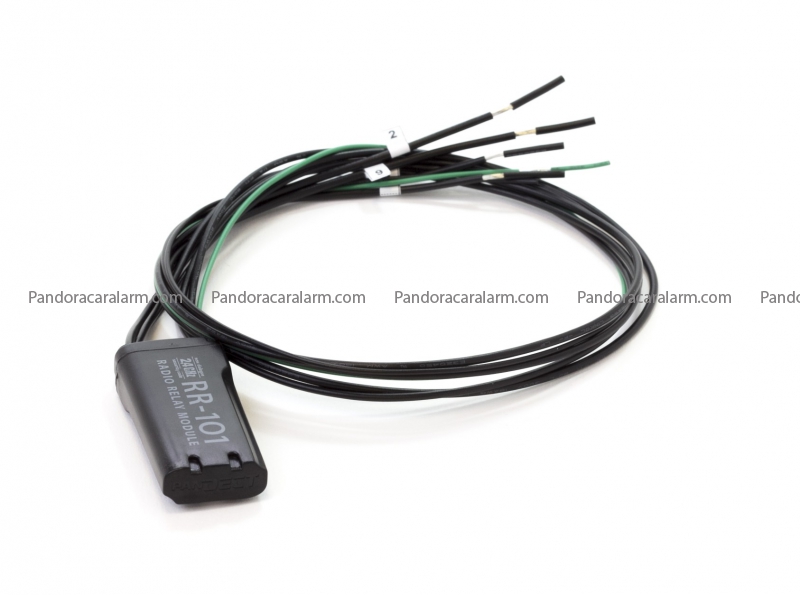

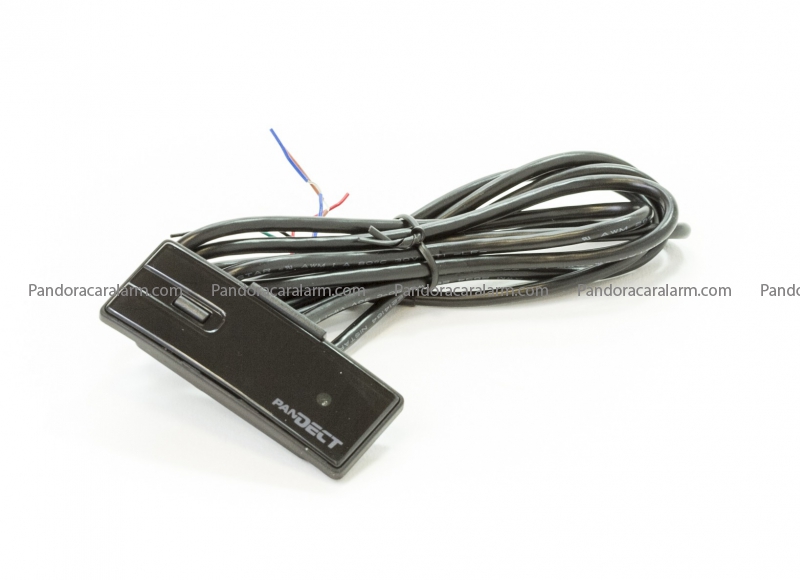

Base unit is used for controlling, status indicating, configurating and urgent disarming. Relay should be installed in one of the electric chains of the car in order to block it when needed; it has a pretty small size so it's easy to integrate it in any car.

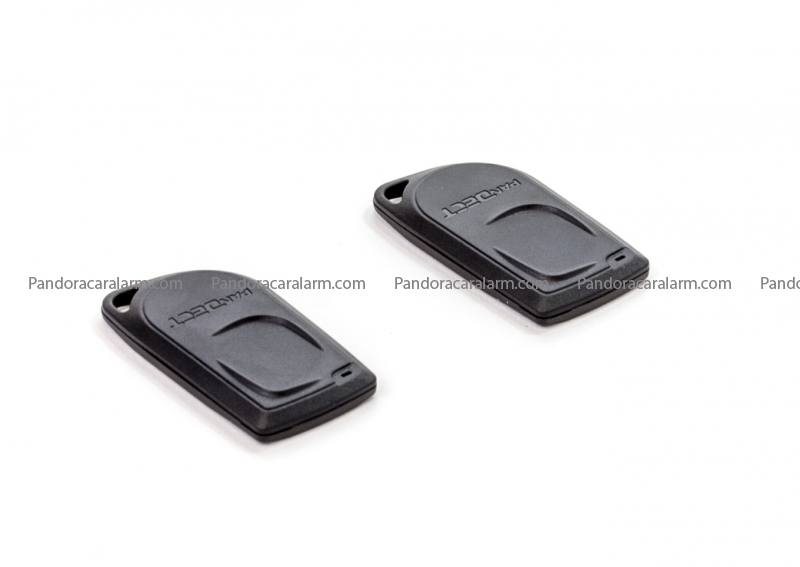

Immobilizer tag is read automatically by the base unit, but it also has a button on its body so that owner could disarm the system manually if needed.

Pandect IS-670 has three Valet modes:

• Car wash;
• Fast service;
• Maintenance.

Use one of Valet modes depending on a place you are leaving the car in and never give the immobilizer tags to third persons.

Specifications:

• Two Anti-hi-Jack algorithms;
• Dialog encryption of commands using 2,4 GHz;
• Integrated motion/tilt sensor;
• “Hands free” mode;
•  Additional relays can be installed (up to three relays).

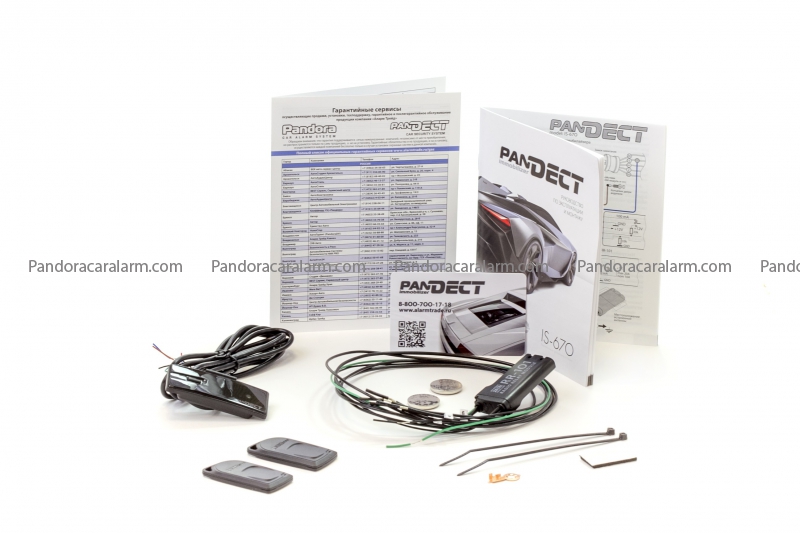

System set:

1. Main unit - 1 pc.
2. Immobilizer relay - 1 pc.
3. IS-750 v2 immobilizer tag - 2 pc.

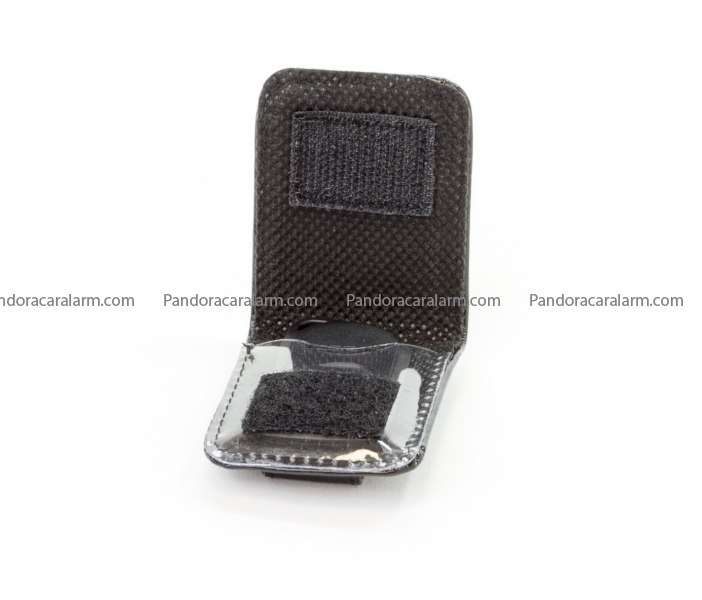

4. Leather case for the tags - 1 pc.
5. Mounting kit - 1 pc.
6. Plastic card with a PIN code - 1 pc.
7. User and installation manuals
8. Packaging
