Pandect X-1170

Pandect X-1170 is a two-way telemetric system with a GSM-module and immobilizer tags. If the alarm was triggered, the system will send a notification to an owner’s cell phone.

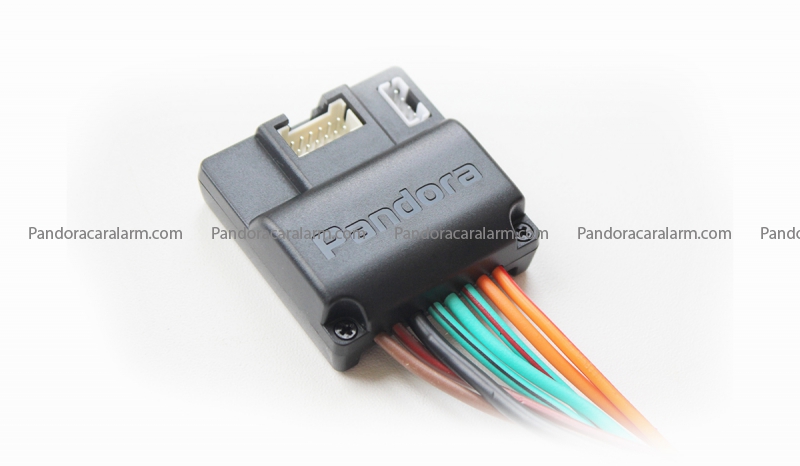

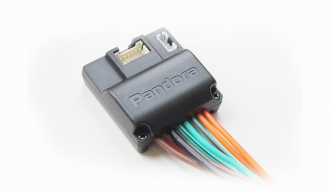

RMD-8 module included in a set provides a car with a remote start function – start your car’s engine via SMS or callings and control all important parameters: system security status, temperature sensors readings, on-board voltage, current time and date, etc. All settings are also performed via cell phone: you can adjust sensors’ sensitivity, preset a timer or a period for remote start, control engine preheater.

There are no pagers in a set so owner’s cell phone and immobilizer tags are main means of control. You may arm and disarm the system using a special button on a tag’s body or use a hands free mode – if the owner with a tag enters particular range, the system will disarm, and will arm again when the owner will leave this range.

After ignition is being switched on, Pandect X-1170 performs a search for immobilizer tags in radio zone. If no tags were detected, the system will lock the engine with all relays that were programmed into the system.

You also can control the system using a car key – Pandect X-1170 will arm and disarm when a central locking will be switched on/of.

Please note: the system uses a 2G GSM module, so it will work in any country where 2G network is widely used.

 System set:

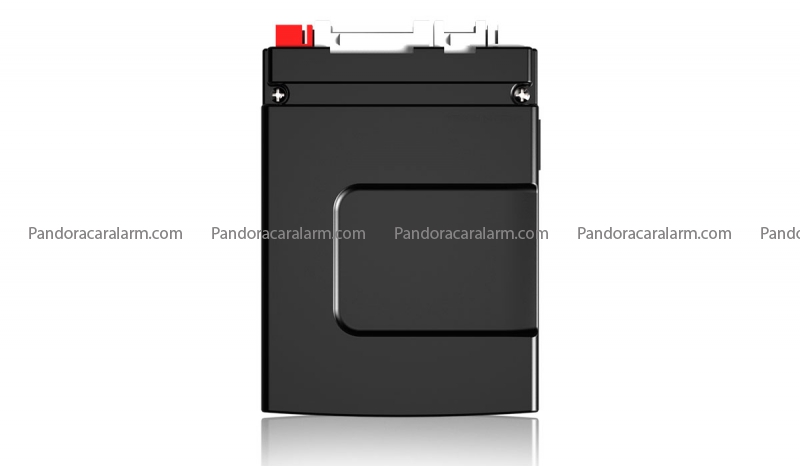

1. Main unit - 1 pc.

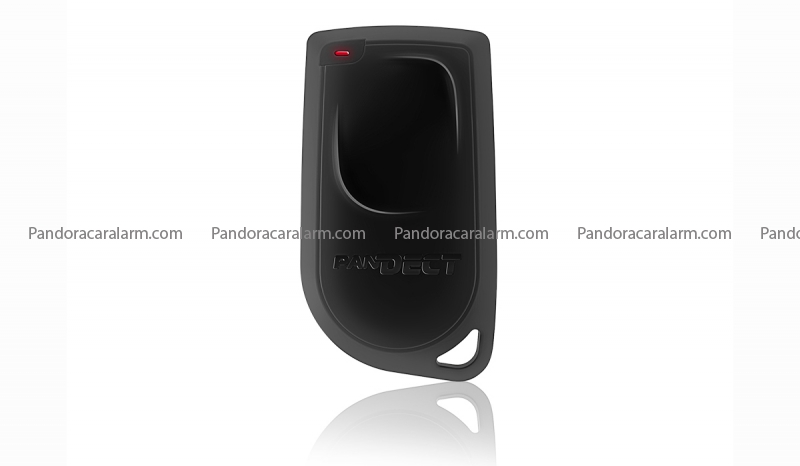

2. IS-750 v2 immobilizer tag- 1 pc.
3. Leather case for the immobilizer tag - 1 pc.
4. Remote starter - 1 pc.

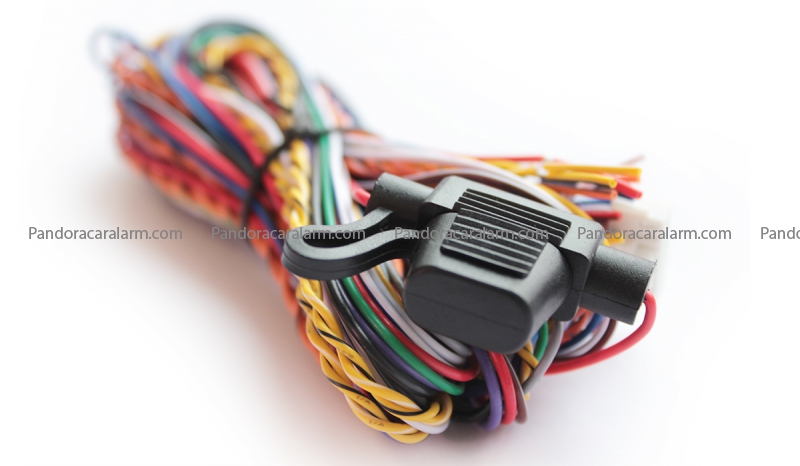

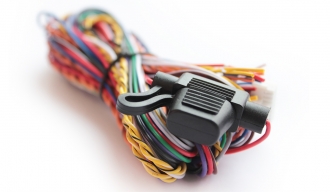

5. Main cable - 1 pc.

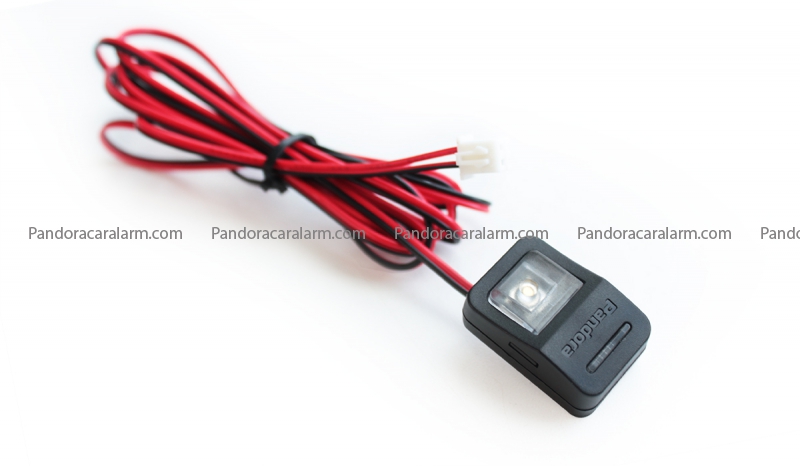

6. Cable with a push-button VALET switch and a three-colored light indicator - 1 pc.

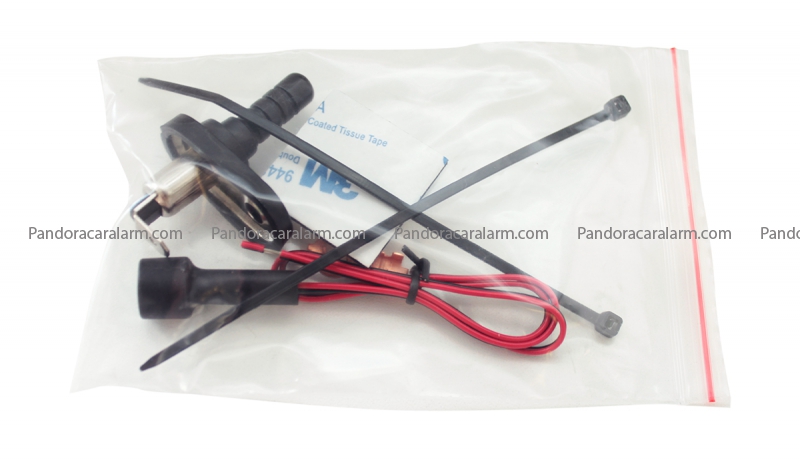

7. Mounting kit - 1 pc.
8. Plastic card with a PIN code - 1 pc.
9. Beeper - 1 pc.

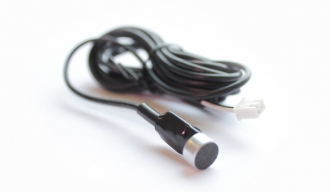

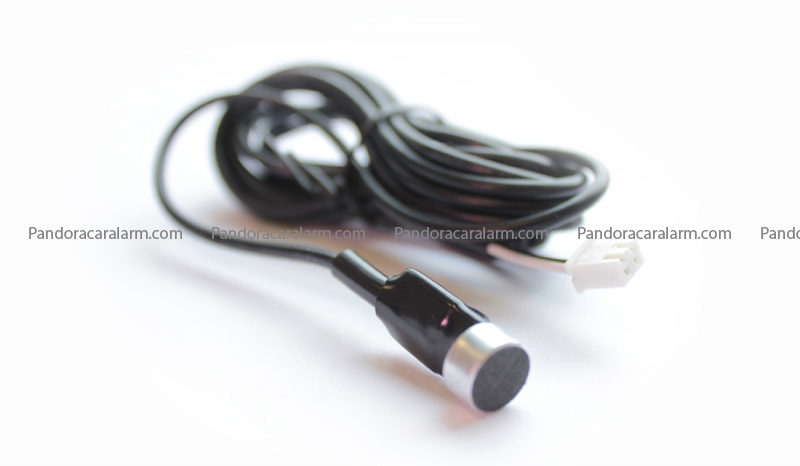

10. Microphone - 1 pc.
11. User and installation manuals
12. Packaging

Please note that this system has been developed for the Russian market, so all the manuals are available in Russian only.
