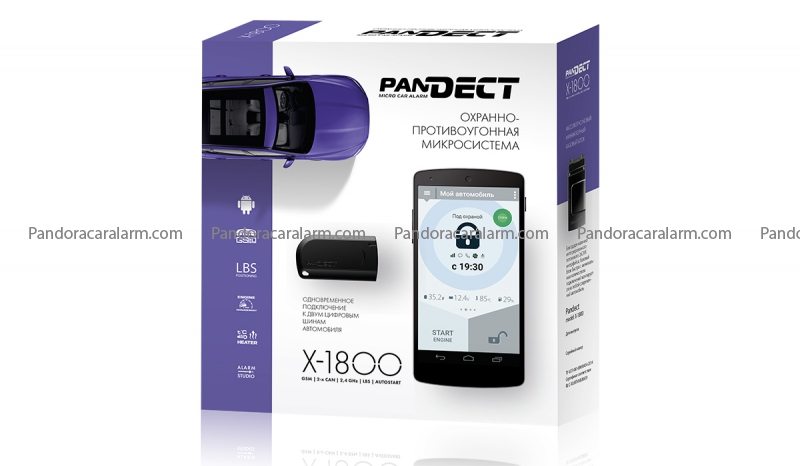

Pandect X-1800 BT

System features 2CAN, Bluetooth 4.2, GSM/GPRS interfaces and has an integrated IMMO-KEY port that allows performing immobilizer bypass without using any of your OEM keys.

You can control the system by DTMF commands or via a mobile app for iOS and Android. Pandect X-1800 BT comes with two Bluetooth immobilizer tags – it is compulsory that you have one of those tags or your phone (which can be used as a tag if has the app installed) to start off. If a person who doesn’t have a tag attempts to do that, the engine will be switched off immediately. BLE interface has set quality of tags’ work on a new level: you can adjust the distance of recognition range, and jam resistance is now even higher. You can use the mobile app via Bluetooth connection at a distance up to 50 meters (164 feet) - unlike GSM and GPRS it is totally free of charge.

Pandect X-1800 BT cooperates with modern cars via CAN bus and can also control engine preheaters via K-Line, W-bus and LIN buses. There’s no need to go to a car shop to update the system’s firmware – you can do it yourself by connecting the main unit to a computer.

Base unit works on STM32F413 microchip that enabled lowering power consuming

System set:

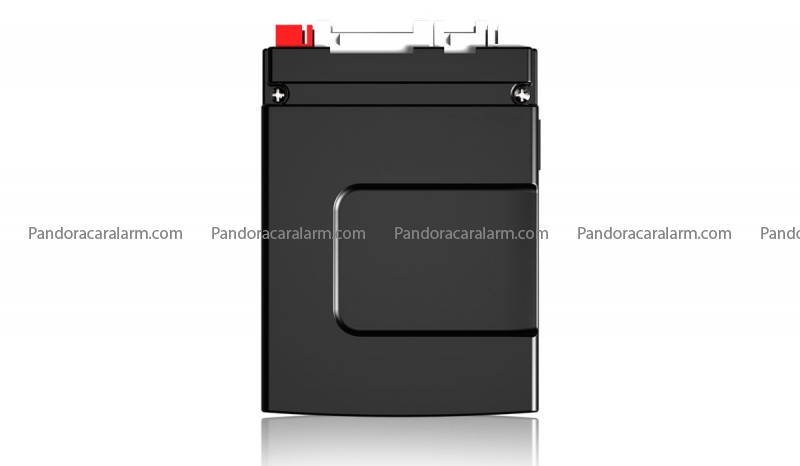

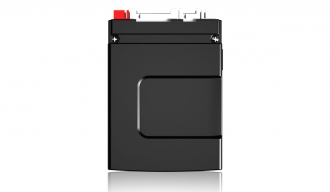

1. Main unit - 1 pc.

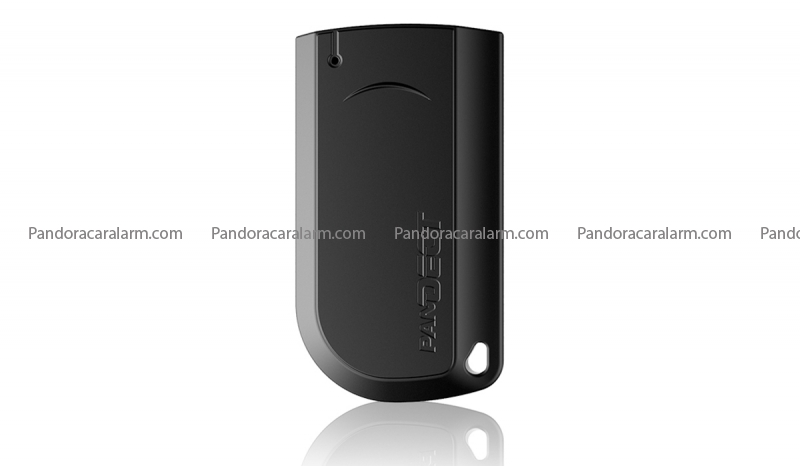

2. BT-760 immobilizer tag  - 2 pc.
3. RMD-5 remote start module - 1 pc.

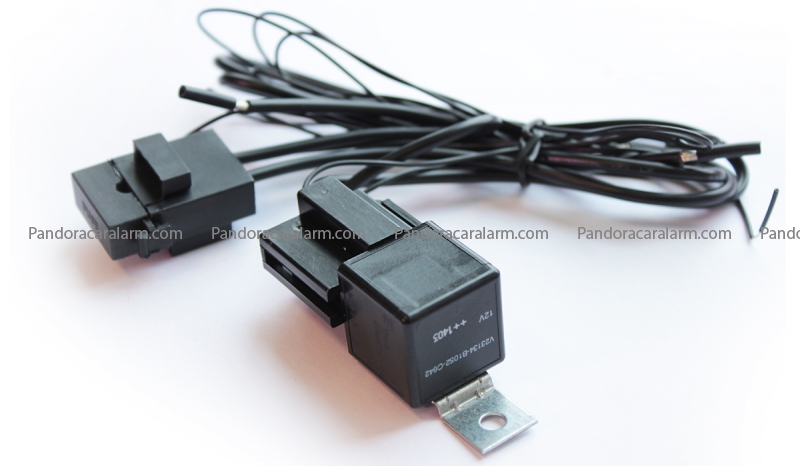

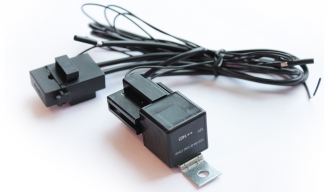

4. Immobilizer relay - 1 pc.

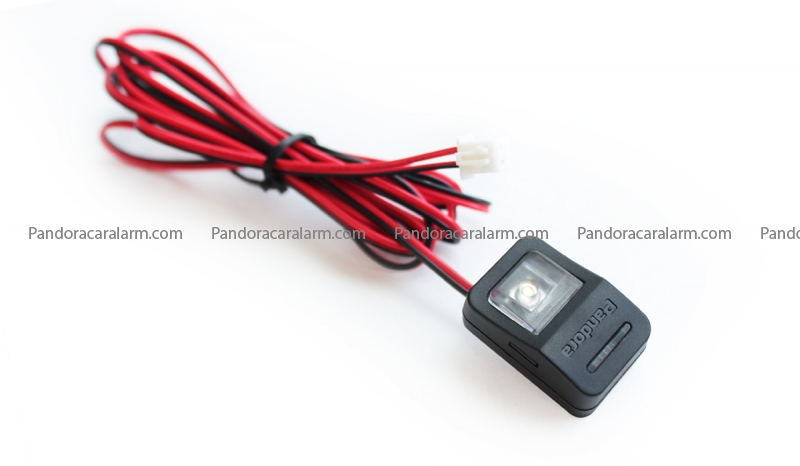

5. Cable with a push-button VALET switch and a three-colored light indicator - 1 pc.

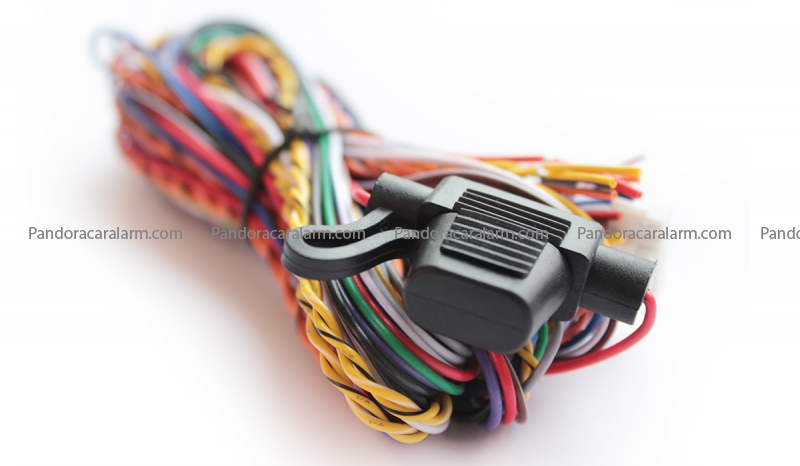

6. Main cable - 1 pc.

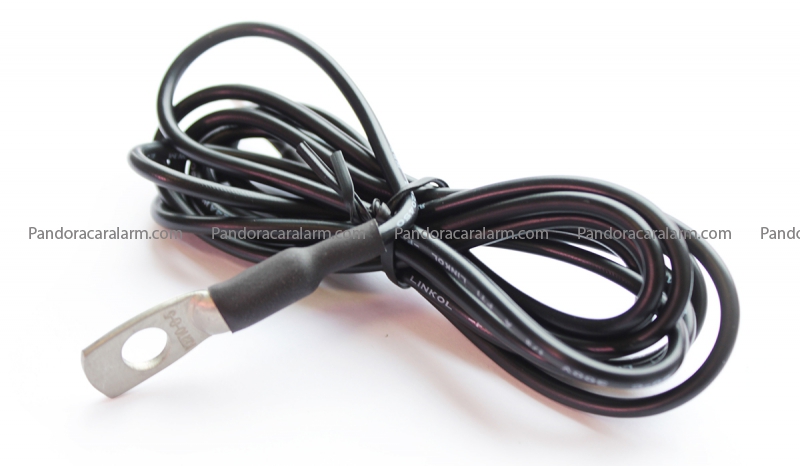

7. Engine temperature sensor - 1 pc.

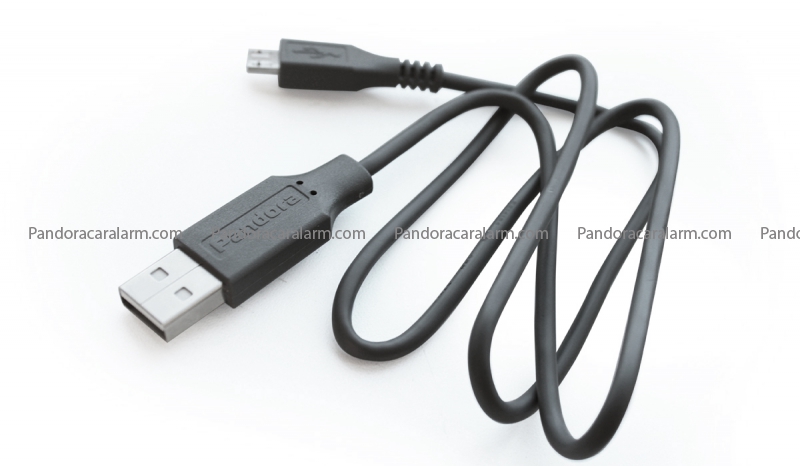

8. USB/micro-USB cable - 1 pc.
9. Beeper - 1 pc.
10. Mounting kit - 1 pc.

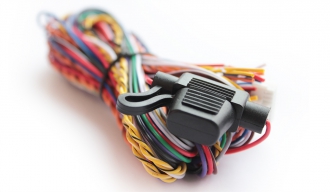

11. Wire harnesses
12. User and installation manuals
13. Packaging

This system is an analogue of the European Pandora systems:

• Pandora Mini
• Pandora Smart

The GSM module may not work in some countries, please contact us for more details before placing your order.
